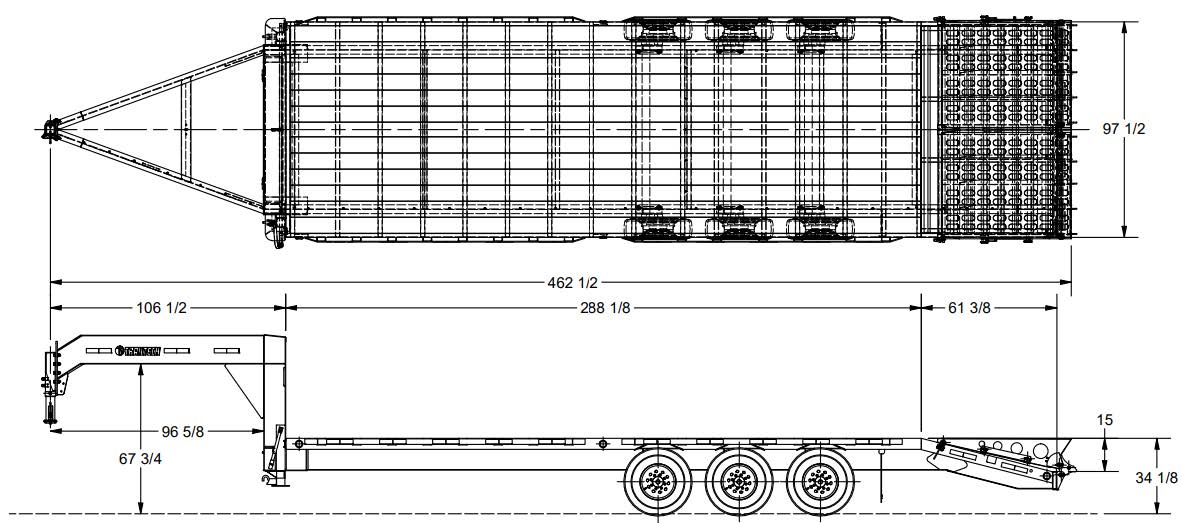

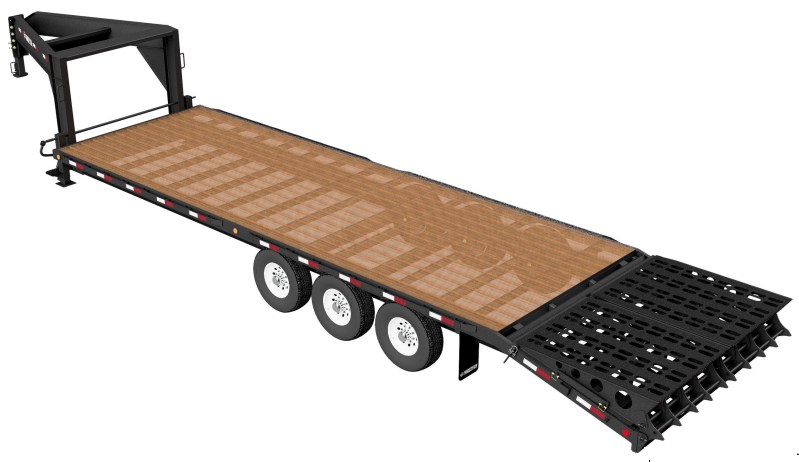

24′ Gooseneck Flatdeck

$26,659.00

Model H370GNBT 24’
GVWR 2650 Lbs
GAWR (per axle) 7000 Lbs
Tare Weight (approx.) 5335 Lbs
Main Frame W10 @12” I Beam
A992/A572-50
Structural Tubing 3” X 2” X.125 Tubing
Crossmembers on 19.2” Centers
Axles (3)7000 lb Electric Braking
Suspension Torsion
Overall Width 102”
Deck Height 38”
Hitch Gooseneck 2 5/16” Ball, Adjustable
Tires ST235/80R16 LRE
Jack (2)15,000 lb 2 speed landing gear
Deck Kiln Dried Canadian Spruce
Ramps Double Pivot Spring Assist TECH Ramps
Lighting & Wiring LED w/ Fully Protected
Options Spare Tire Rim & Carrier, Gooseneck King Pin



Share

Print

Contact Us
Category:-

Beavertail & Double Pivot Ramps The 5.5’ beavertail creates an ideal loading incline combined with the ease of spring assisted ramps.
Steps & Grab Handles Gooseneck step and grab handles make it easier and safer to get up on to the trailer deck.
Open Cleated Beavertail The open cleated beavertail eliminates the slippage common on wooden beavertails.

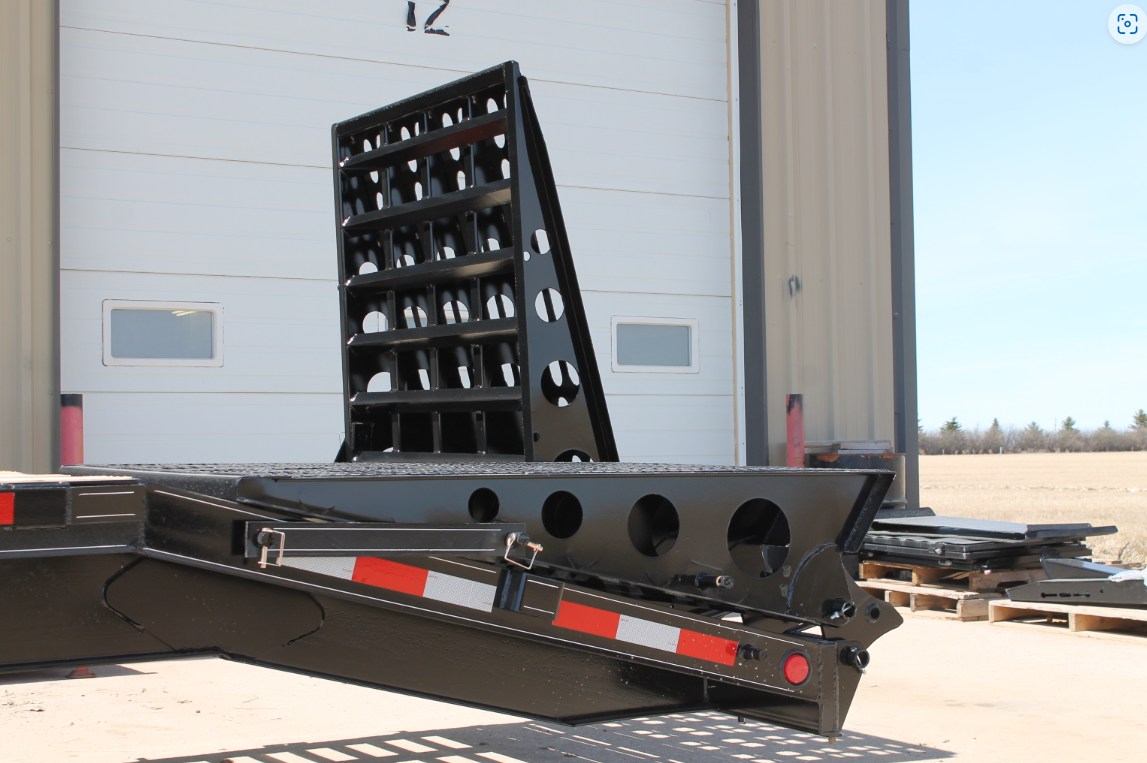

Double Pivot Sprng Assisted TECH Ramps It is now easier than ever to extend the length of your deck with the dou-ble pivot spring assisted TECH ramps.
Dual Drop Foot Jacks Dual HD drop foot jacks and expanded metal basket are standard on all goosenecks, for in-creased stability, lift and storage capacity.
Hitches Models are available with either pintle or gooseneck hitches allowing you to match any tow vehicle require-ments.
Options
Spare Tire, Rim and Carrier
ST235/85R16 “G” tire upgrade
Double Pivot Spring assisted TECH Ramps
Gooseneck c/w kingpin coupler
