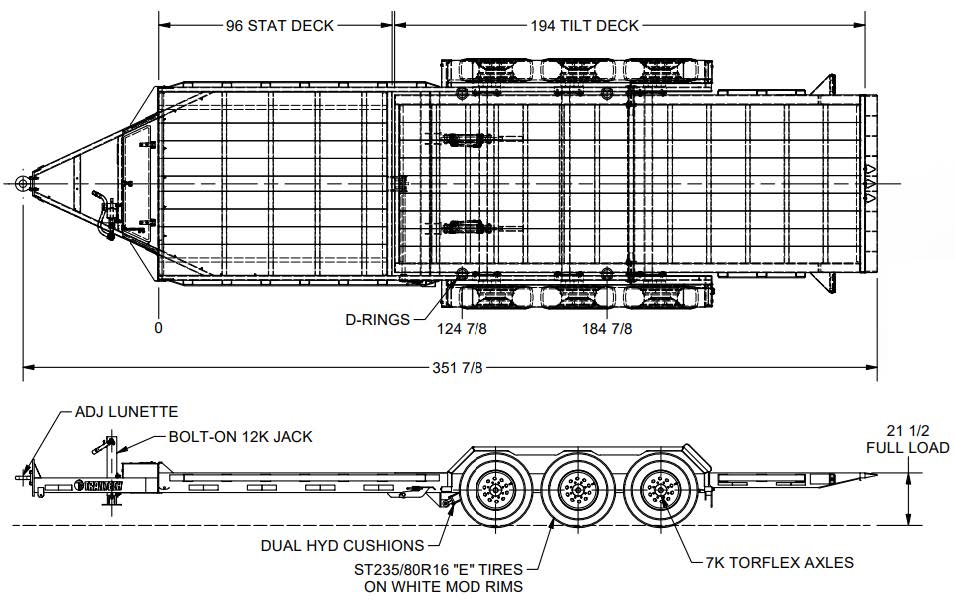

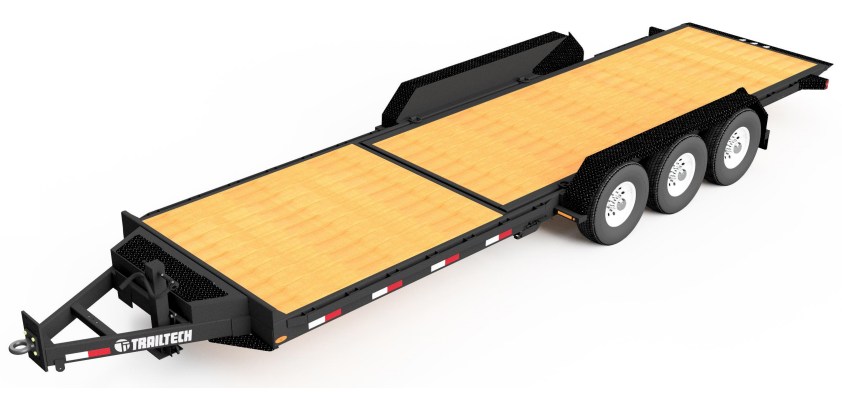

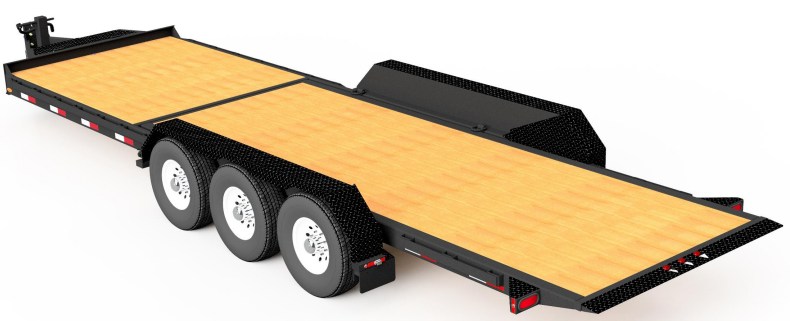

24′ Tri-axle Tilt Trailer

$20,453.50

L370T-24
Model L370T-24
GVWR 24150 Lbs
GAWR (per Axle) 7000 Lbs
Tare Weight (approx.) 4173 Lbs
Main Frame 8” X 2” X 1.88”
Tubing 13.78#
Per Foot ASTM A36/44W
Crossmembers 3” X 2” X 1.25”
Tubing on 19.2” Centers
Axles (3) 7000 lb electric
Suspension Torsion

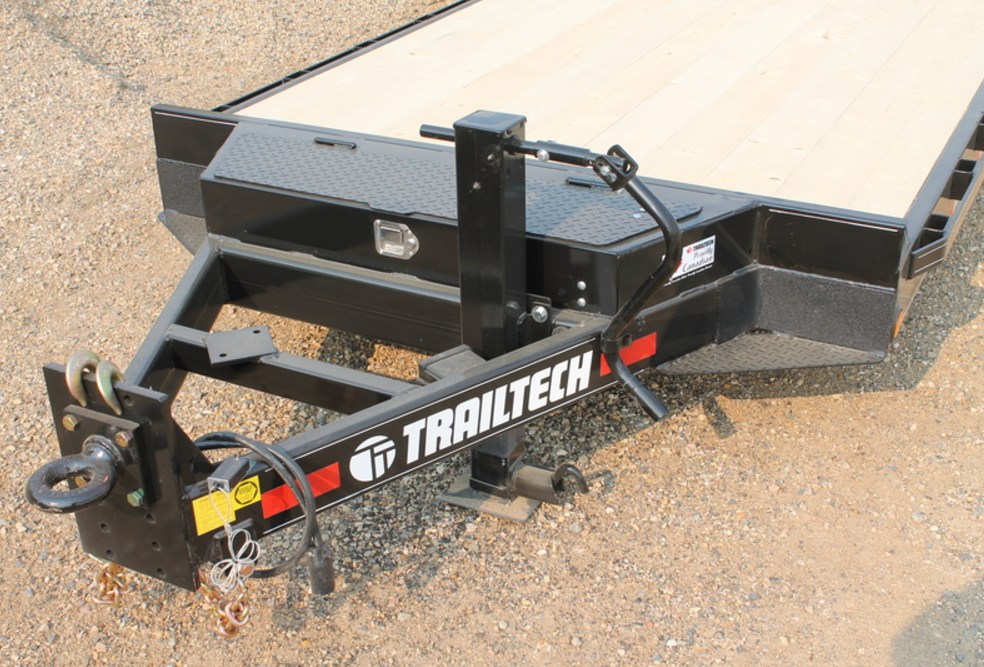

Coupler Lunette Eye Adjustable
Jack 12,000 Lb Drop Foot
Overall Width 102”
Fenders 1/8” Checkerplate Jeep Style
Inside Fender Width 82.5”
Deck Height 24”
Ramps Tilt
Deck Kiln Dried Canadian Spruce
Tires ST235/80R16 LRE
Lights & Wiring LED w/ Fully Protected
Arctic Wiring



Share

Print

Contact Us
Category:-

When you require the best, the Premier series trailer will be your
choice. The Trailtech Premier series trailers are manufactured using
the latest in trailer technology and design. The HSS tubing
main frame and crossmembers are carefully matched to the
GVWR of each trailer, ensuring proper weight to strength ratio
required for maximum performance. Axles, slipper spring or rubber
ride suspensions, wheels and radial tires are also selected specially
for each model. Reflective taping, safety breakaway kits,
safety chains, rated couplers, rubber mounted and recessed
lighting and protected wiring all ensure that each Premier series
trailer model will provide years of trouble-free use and maximum
safety for you.
With a wide variety of standard features on each of the Premier
series trailer models, you will be able to select a trailer that will
meet your needs. The design of the Premier series trailers make
for easy loading with the low deck height, and many ramping options
are available, including a tilting deck. The treated wood decking
provides for long life and the ability to handle the most extreme
working conditions.
LED lighting is rubber mounted and recessed to increase life and
response time. All electrical wiring is protected and connections
are sealed for maximum protection and trouble-free use. Sealed
junction boxes are used in key areas for critical wiring connections.
