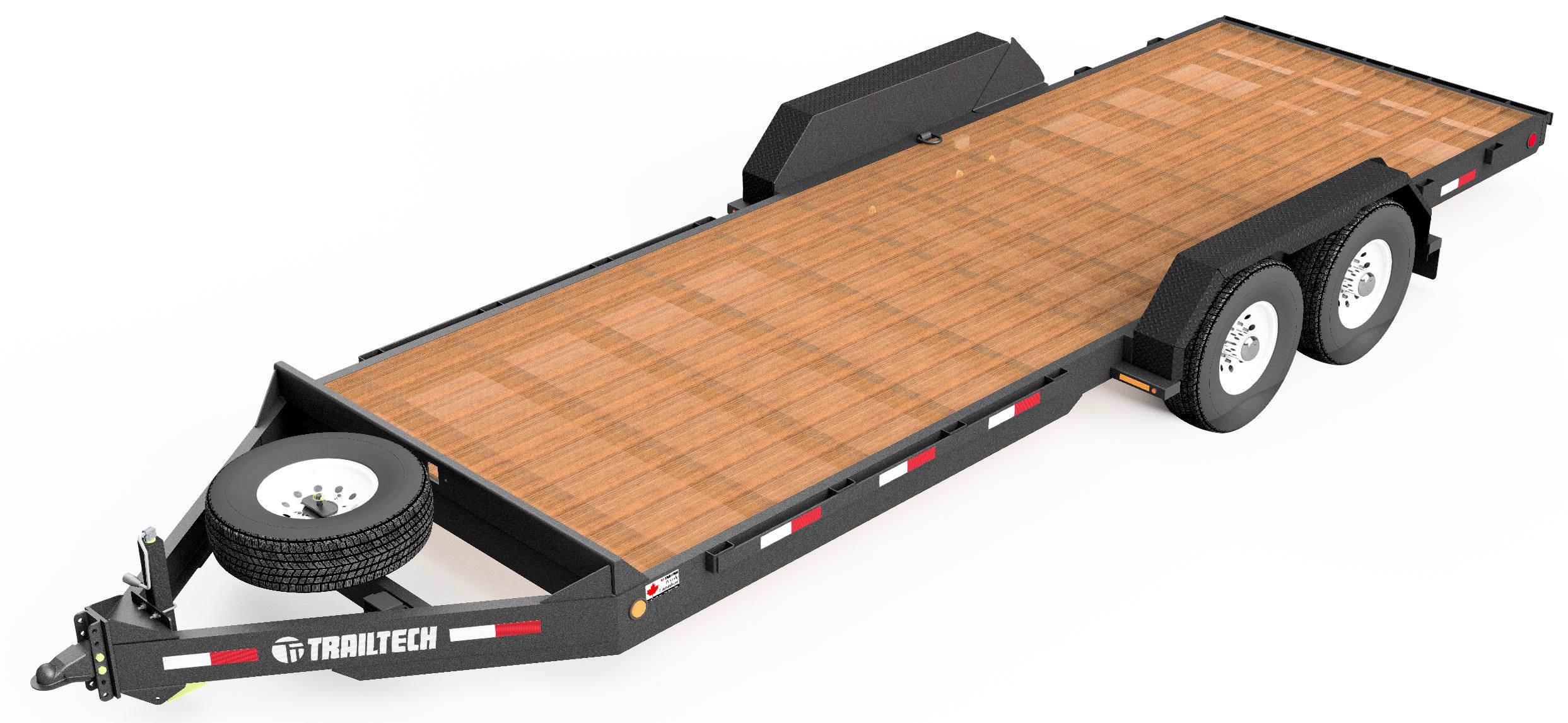

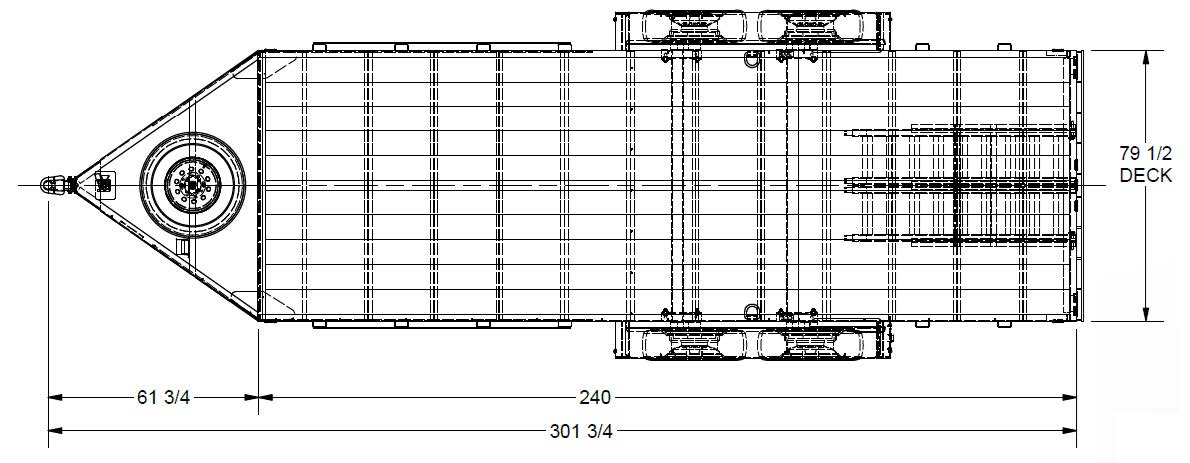

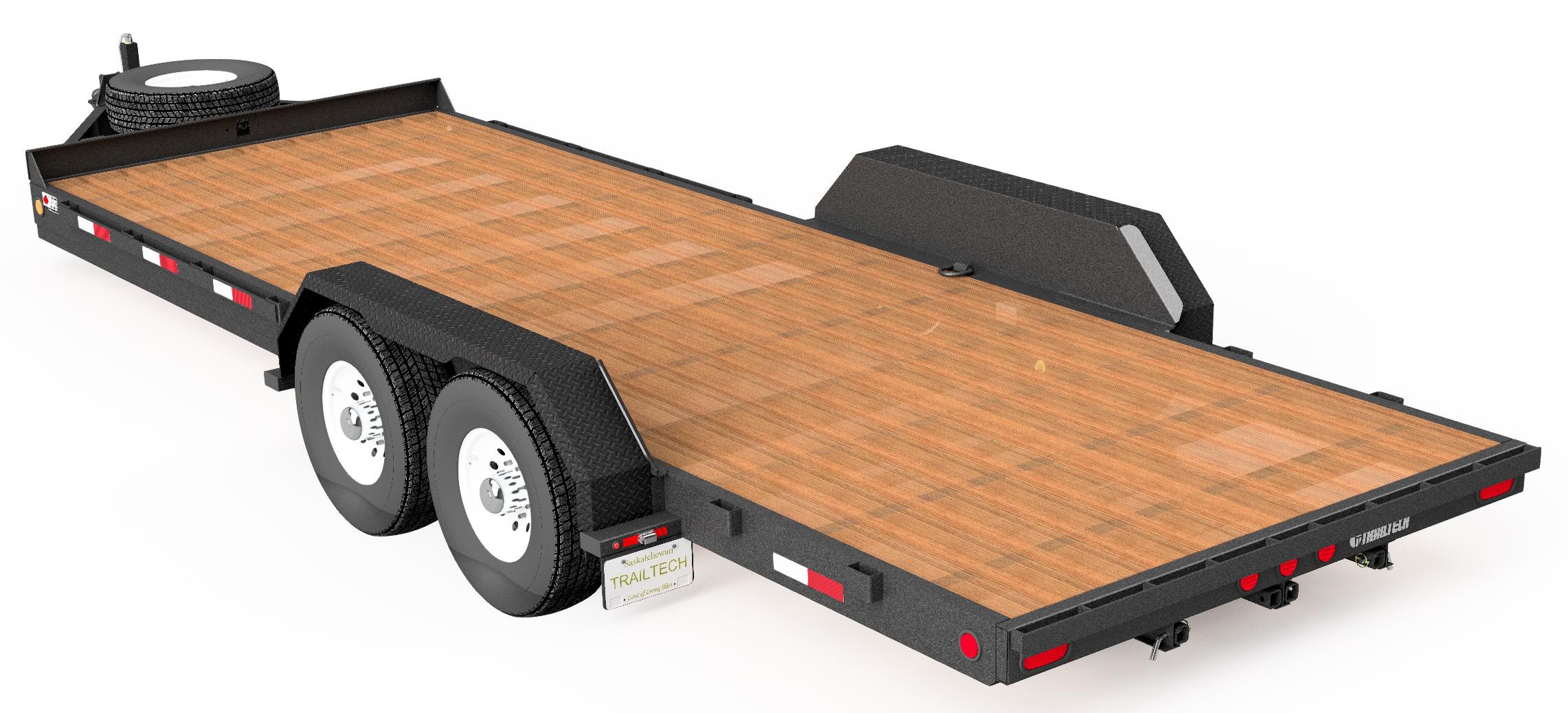

Flat Deck 20′

$12,479.50

Model CELR270-20
GVWR 16100 Lbs
GAWR (Per Axle) 7000 Lbs
Tare Weight (approx.) 2492 Lbs
Main Frame 7” Channel Iron
ASTM A36/44W
Crossmembers 3” X 2.9# SLB QT
Steel I-Beam
Axles 2 7000 lb Electric
Braking
Suspension Torsion
Coupler 2 5/16” Adjustable
Jack 8000 lb Drop Foot
Overall Width 102 Inches
Fenders Checkerplate Jeep Style

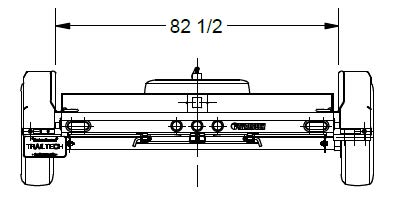

Inside Frame Width 82.5 Inches
Deck Kiln Dried Canadian Spruce
Deck Height 23 Inches

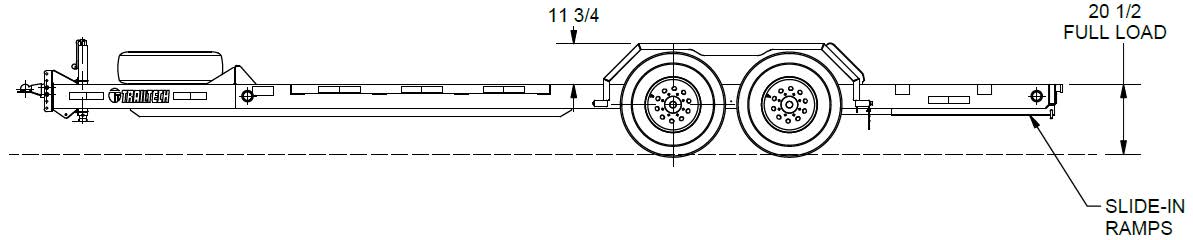

Ramps Slide In
Tires ST235/80R16 LRE
Lights & Wiring LED c/w Fully Protected
Arctic Wiring

Share

Print

Contact Us
Category:-

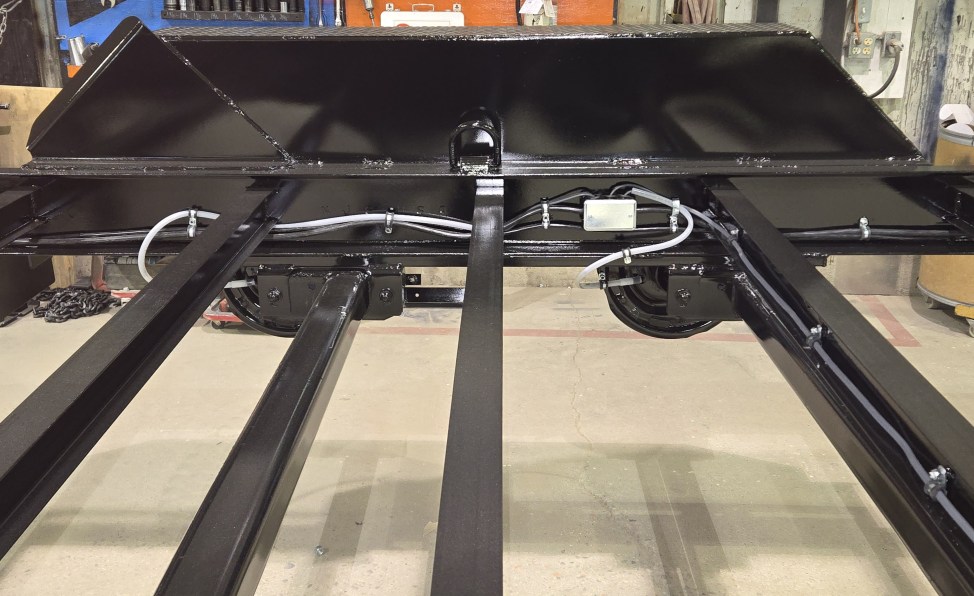

When you need strength and value, the Trailtech Construction series trailers deliver it to you. This series is built to work using a channel main frame and SLB crossmembers, and axles that can bear the load. The torsion suspension is standard on all Con-struction series models Radial tires with white spoke wheels and chrome centers are standard equipment on all trailers.

HD 8000# Top Crank Jack The heavy duty top crank drop leg jack is bolted to the trailer and is easily removeable.

Fender Guards The fender guard protects against the unexpected and will keep your fenders looking good as new for years to come. This is all done without sacrificing payload space.

Slide In, Dovetail and Flip-up Ramps All CEL models are available with Slide In, Dovetail or Flip Up Ramps, and when loading heavier equipment the extra support of the flip up ramps will meet your needs.

Adjustable Ball Coupler Hooking up a Construction series trailer is now easier than ever using the adjustable ball cou-pler to raise or lower the height

Optional Spare Tire Carrier All CEL models have available an optional spare tire, rim & carrier. This allows you to have a spare right on the trailer
